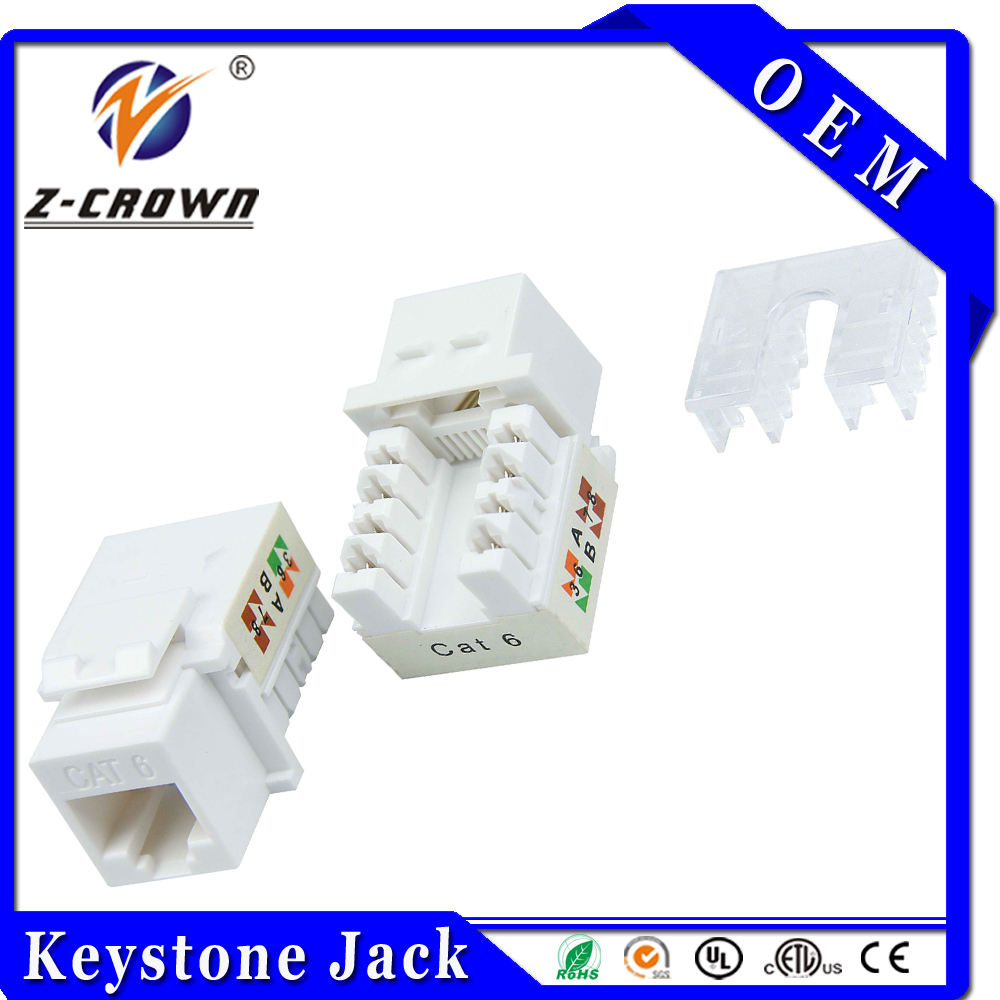

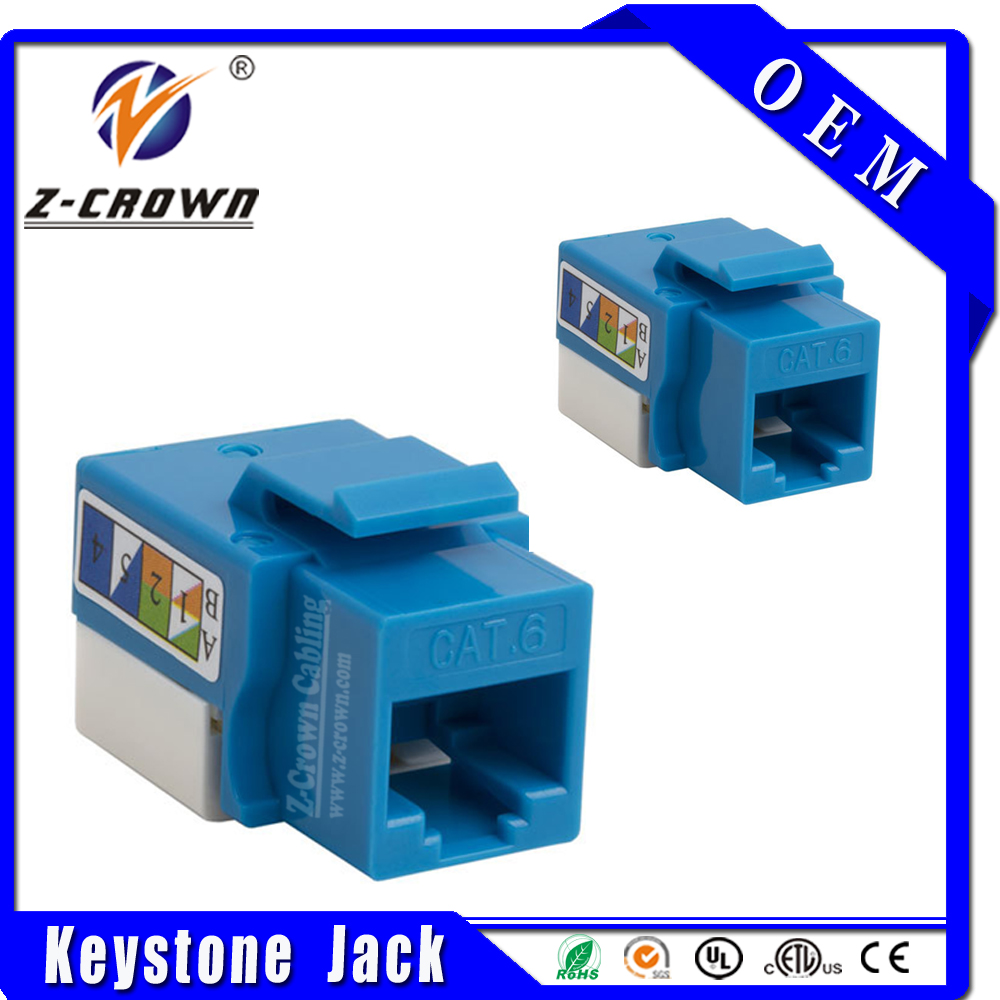

Cat6 UTP 90°Modular Jack Z-Crown
| Price: | Get Latest Price |
| Model: | CE, ROHS,UL |
| Material: | |
| Standard: | Shenzhen,CN |
| Packaging |
Description
Performance
Standard
◆Meet TIA/ EIA-568A and TIA/ EIA-568B CAT5E/ CAT6/ CAT6A Requirements.
◆Meet TIA/ EIA TSB-40.
◆Meet ISO/ IEC Generic Cabling Standerd 11801
◆Meet CENELEC Generic Cabling Standerd EN50173
Packing
◆1 Piece/ Polybag
◆50 Pieces/ Box
◆10 Boxes/ Carton
◆Carton Size: 63*52*35cm
| Material | Housing/ Shell | High Impact PC ,UL94V-0 |
| Shielded | Zinc Die Casting | |
| Spring Wire | Bare Copper with Gold-plated | |
| IDC Contact | Bare Copper | |
| IDC Holder | High Impact PC, UL94V-0 | |
| PCB | Glass Fiber (One PCB) |
Performance
| Techinical Details | Current Rating | 1.5 Amps |
| Insulation Resistance | 500 Megaohm | |
| DC Resistance | 0.1 OHM Max | |
| Voltage | 150 VAC Max | |
| Insertion Life | ≥ 1000 Mating Cycles | |
| Plug Retention Force | 89N | |
| IDC Accept | 22 - 26 AWG Solid Cables | |
| Cable Scheme | T568A/ B | |
| Angel | 90 Degree | |
| Test | Passed | |
| Spring/ Pin | Special Pin Design, Twist Cables as You Like |
Standard
◆Meet TIA/ EIA-568A and TIA/ EIA-568B CAT5E/ CAT6/ CAT6A Requirements.
◆Meet TIA/ EIA TSB-40.
◆Meet ISO/ IEC Generic Cabling Standerd 11801
◆Meet CENELEC Generic Cabling Standerd EN50173
Packing
◆1 Piece/ Polybag
◆50 Pieces/ Box
◆10 Boxes/ Carton
◆Carton Size: 63*52*35cm
