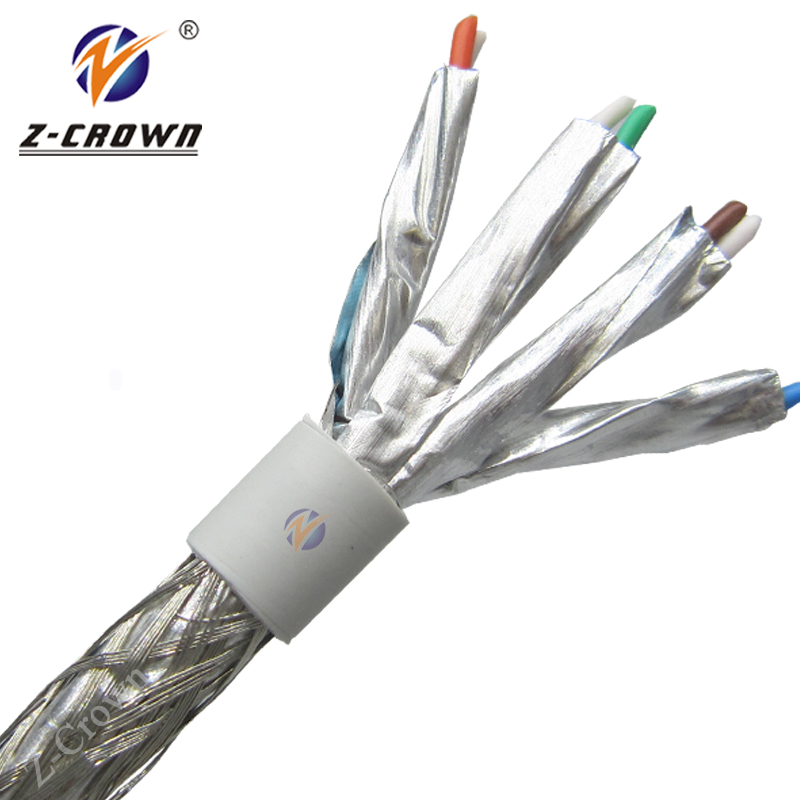

Cat6a F/FTP Cable
| Price: | Get Latest Price |
| Model: | |
| Material: | |
| Standard: | CE, ROHS, ETL , UL, ISO9001 |
| Packaging |
Description
Performance
Features
◆CAT6A SFTP cable complies with Category 6A UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
◆Support Transmission of digital and analogue voice, data and video signal.
◆Rated Temperature: -20℃ to 75℃.
Application
◆10000 Base-T4
◆10000 Base-TX
◆10000 VG-AnyLan
◆10000 Base-T
◆500Mbps ATM
◆650Mbps ATM
Packing
◆305m/ 1000ft/ Plywood Reel
2 Plywood Reels/ Carton
Plywood Reel Size: 38cm (Diameter) * 28cm (Height)
Carton Size: 78*40*30cm
| Inner Conductor | Material | Bare Copper |
| Diameter | 0.58mm ± 0.01mm | |
| Insulation (Dielectric) | Material | New PE (Polyethylene) |
| Thickness | ≥0.35mm | |
| Diameter | 1.3mm ± 0.01mm | |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Drain Wire | Material | Bare Copper & CCA |
| Shielded Layer | Material | AL Foil |
| Type | AL Foil for each Pair | |
| Braided | Material | AL, CCA, CU, TC and so on |
| Type | 48, 64, 80, 96, 112, 128, 144 | |
| Diameter | 0.08mm, 0.1mm, 0.12mm | |
| Outer Jacket | Material | New PVC (Rip Cord, Optional) |
| Thickness | ≥0.55mm | |
| Normal O.D. | 7.7mm ± 0.1mm |
Performance
| Sheath Physical Properties | Before Aging | Tensile Strength (Mpa) | ≥10.0 |
| Elongation (%) | ≥125 | ||
| Aging Period | ℃ * hrs | 100℃* 24h * 7d | |
| After Aging | Tensile Strength (Mpa) | ≥8 | |
| Elongation (%) | ≥100 | ||
| Cold Bend | -20℃ ± 2℃ * 4 h | No Visible Cracks | |
| Electrical Characteristics (20℃) | Impedance (Ω) | 1-100 MHz | 100 ± 15 |
| 100-250 Mhz | 100 ± 18 | ||
| 250-1000 MHz | 100 ± 25 | ||
| Delay Shew | 20℃ （ns/100m） | ≤25 | |
| Velocity of Propagation | % | 74 | |
| DC Resistance | 20℃ (Ω/ 100m) MAX. | 9.5 | |
| DC Conductor Resistance Unblance | (%) MAX. | 2.0 | |
| Unbalanced to Ground Capacitance | PF/100M MAX. | 330 |
Features
◆CAT6A SFTP cable complies with Category 6A UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
◆Support Transmission of digital and analogue voice, data and video signal.
◆Rated Temperature: -20℃ to 75℃.
Application
◆10000 Base-T4
◆10000 Base-TX
◆10000 VG-AnyLan
◆10000 Base-T
◆500Mbps ATM
◆650Mbps ATM
Packing
◆305m/ 1000ft/ Plywood Reel
2 Plywood Reels/ Carton
Plywood Reel Size: 38cm (Diameter) * 28cm (Height)
Carton Size: 78*40*30cm
