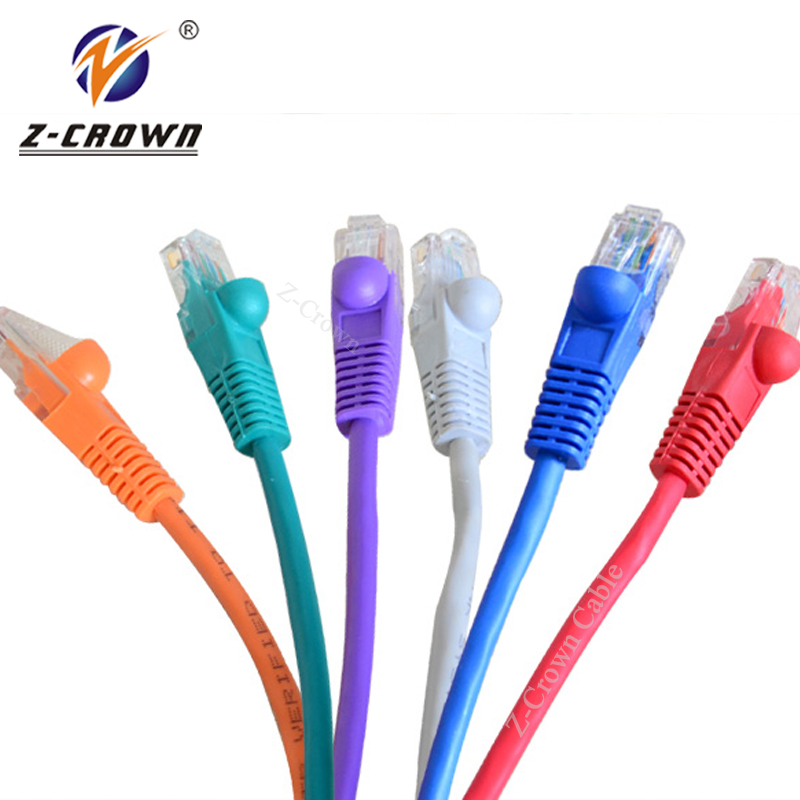

Cat5e UTP Patch Cord
| Price: | Get Latest Price |
| Model: | |
| Material: | |
| Standard: | CE, ROHS, ETL , UL, ISO9001 |
| Packaging |
Description
Performance
Features
◆CAT5E patch cord complies with Catagory UL444, ANSI/ TIA/ EIA568B & ISO/ IEC 11801 standard.
◆Supports transmission of digital and analogue voice, data, and video signal.
◆With RJ45 connectors in the both side.
◆Rated Temperature: -20℃ to 70℃.
Packing
◆1 Piece/ Polybag
◆Some Pieces/ Carton (Depend on the length)
| Inner Conductor | Material | Bare Copper |
| Diameter | 7*0.16mm (26AWG) | |
| Insulation (Dielectric) | Materail | Color-coded PE (Polyethylene) |
| Thickness | ≥ 0.18mm | |
| Diameter | 0.91mm ± 0.01mm | |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | PVC |
| Thickness | ≥ 0.55mm | |
| Normal O.D | 5.1mm ± 0.1mm | |
| Boot | Material | PVC |
| Shape | Customised | |
| Technology | Injection Molding | |
| Connector | Type | CAT5E UTP RJ45 Connector |
Performance
| Sheath Physical Properties | Before Aging | Tensile Strength (Mpa) | ≥13.5 |
| Elongation (%) | ≥150 | ||
| Aging Period | ℃ * hrs | 100℃* 24h * 7d | |
| After Aging | Tensile Strength (Mpa) | ≥12.5 | |
| Elongation (%) | ≥125 | ||
| Cold Bend | -20℃ ± 2℃ * 4 h | No Visible Cracks | |
| Electrical Characteristics (20℃) | 1.0-100.0Mhz | Impedance (Ω) | 100 ± 5 |
| Delay Shew | 20℃ （ns/100m） | ≤45 | |
| Capacitance | nF/ 100m MAX. | 5.6 | |
| DC Resistance | 20℃ (Ω/ 100m) MAX. | 9.5 | |
| DC Conductor Resistance Unblance | (%) MAX. | 5.0 |
Features
◆CAT5E patch cord complies with Catagory UL444, ANSI/ TIA/ EIA568B & ISO/ IEC 11801 standard.
◆Supports transmission of digital and analogue voice, data, and video signal.
◆With RJ45 connectors in the both side.
◆Rated Temperature: -20℃ to 70℃.
Packing
◆1 Piece/ Polybag
◆Some Pieces/ Carton (Depend on the length)
