RG59 + 2Powers Coaxial Cable
| Price: | Get Latest Price |
| Model: | |
| Material: | |
| Standard: | CE, ROHS, ETL , UL, ISO9001 |
| Packaging |
1, Product Description :
Copper Conductor XLPE Insulated Steel Wire Armored Power Cable
- 0.81mm CCS/CU conductor 50 ohm

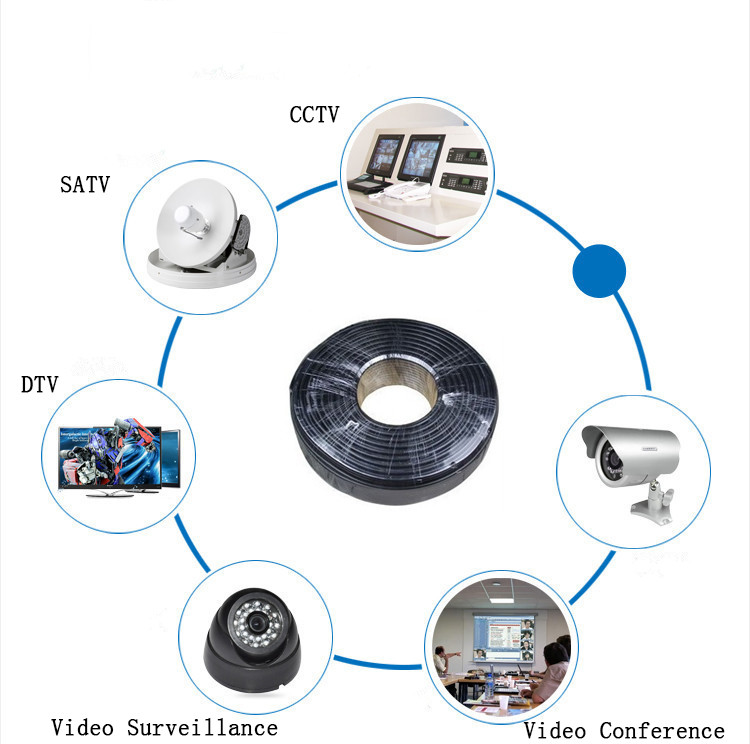

- CATV-community antenna television
- CCTV-closed-circuit television
- DBS-direct broadcasting satellite

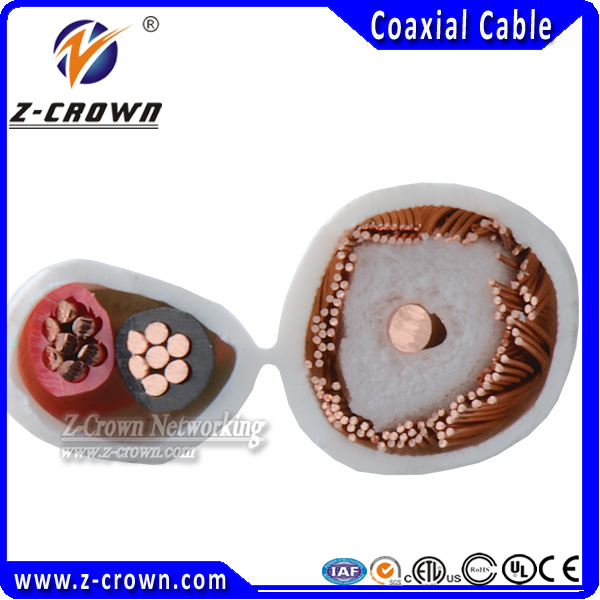

Product Structure :
| Model NO. | CCTV cable RG59 power cable CCA/CCS/CU/BC |
| Center conductor |
Copper Clad Steel, Bare Copper, Tinned Copper |
| Al-foil |
Unbonded AP, Bonded AP, APA |
| Braiding wire |
AL_MG, Bare Copper, Tinned Copper |
| Braiding wire diameter | 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm |
| Braiding net | 32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available |
| Braiding coverage | Between 30% - 100% available |
| PVC jacket |
Flame retardant, UV, or UL available |
| With Siamese |
2*15*0.15mm 2*18*0.18mm 2*7*0.38mm CCA/BC/Tinned Copper |
| With Messenger |
1.0mm/1.3mm Steel |
| Packing Lengths | 100m/roll, 200m/roll, 305m/roll, according to client's request |
| Inner packing |
Roll, wooden reel, plastic reel, paper reel available |
| Outer packing |
Carton box, pull out box, pallet available |
Electrical Characteristic :
| Attenuation Performance [@68 ° F. (20 ° C)] | ||
| Frequency(MHz) | Maximum (dB/100ft) | Maximum (dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 2.05 | 6.73 |
| 83 | 2.45 | 8.04 |
| 187 | 3.60 | 11.81 |
| 211 | 3.80 | 12.47 |
| 250 | 4.10 | 13.45 |
| 300 | 4.45 | 14.60 |
| 350 | 4.80 | 15.75 |
| 400 | 5.10 | 16.73 |
| 450 | 5.40 | 17.71 |
| 500 | 5.70 | 18.70 |
| 750 | 6.98 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.13 | 26.64 |

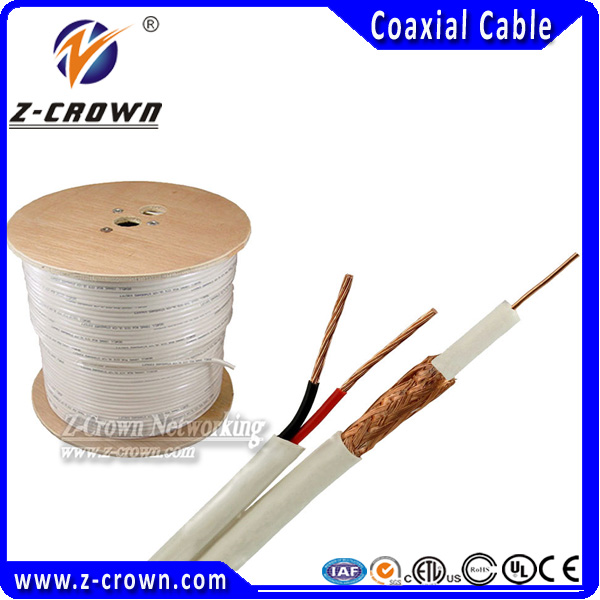

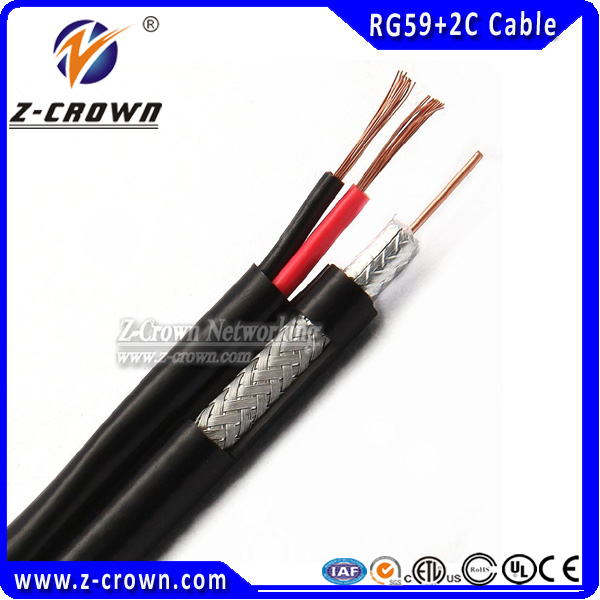

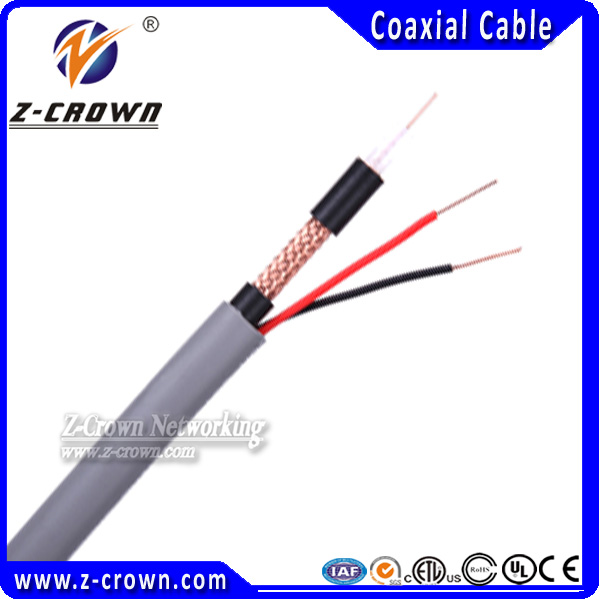

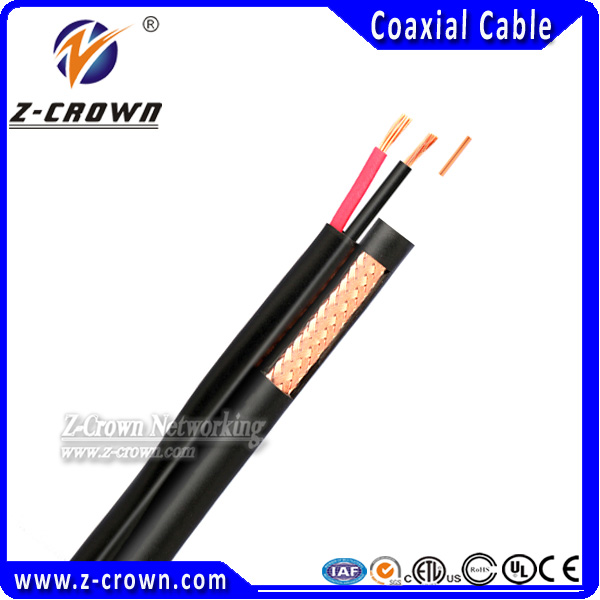

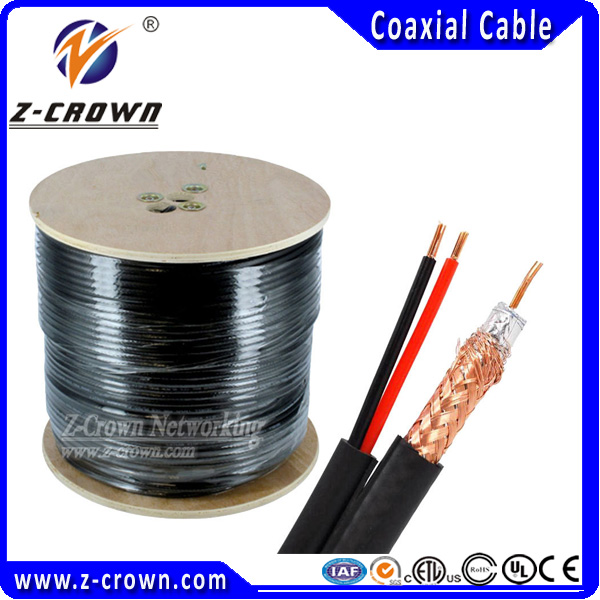

Product show:
2, Packaging & Shipping :
3, Our Services :

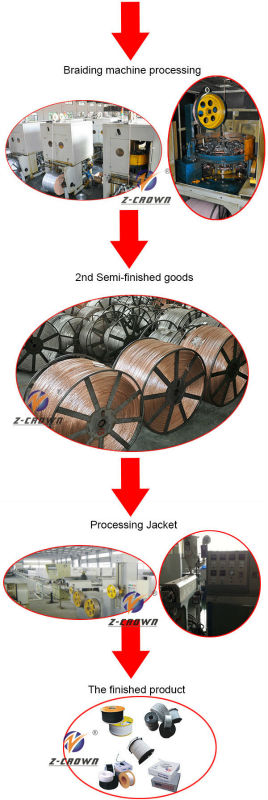

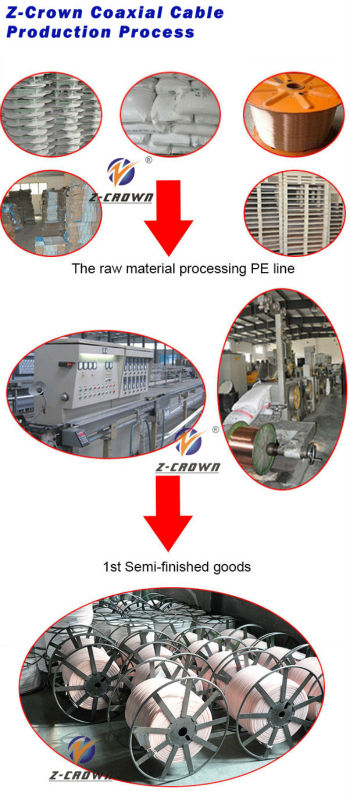

4, Company Information :
5, FAQ
