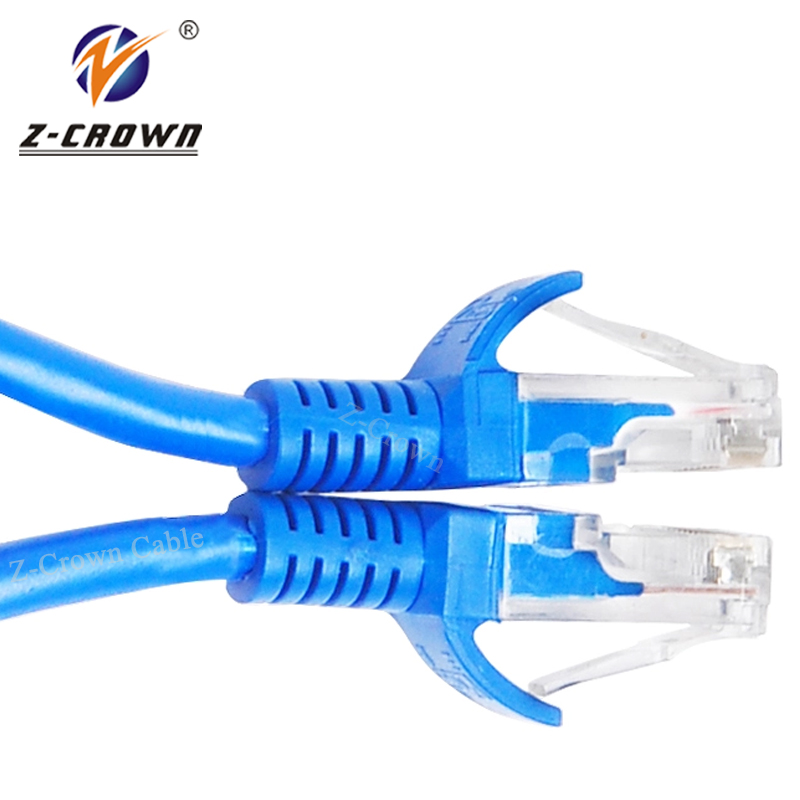

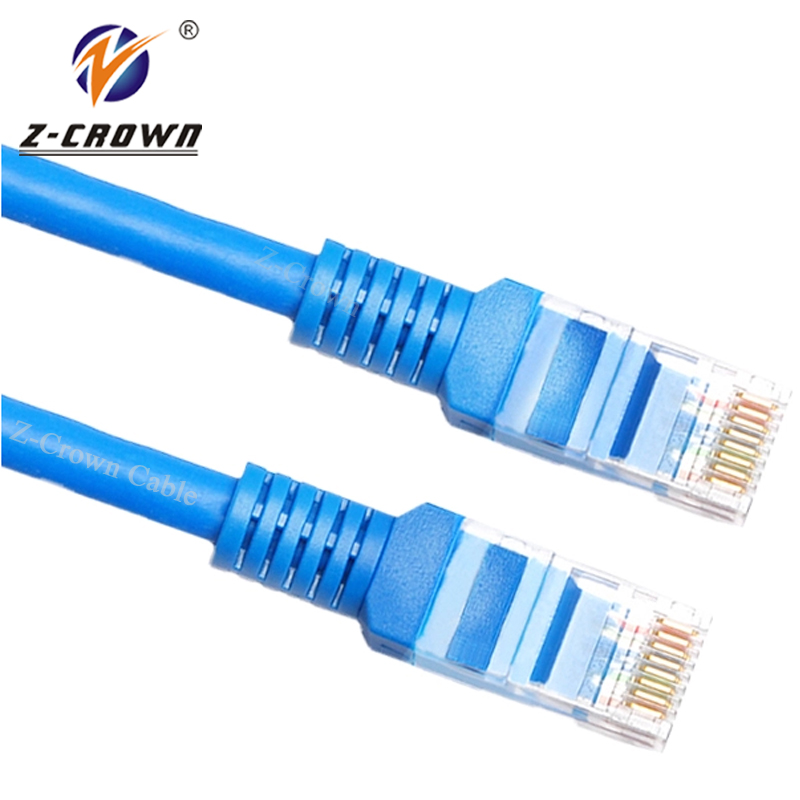

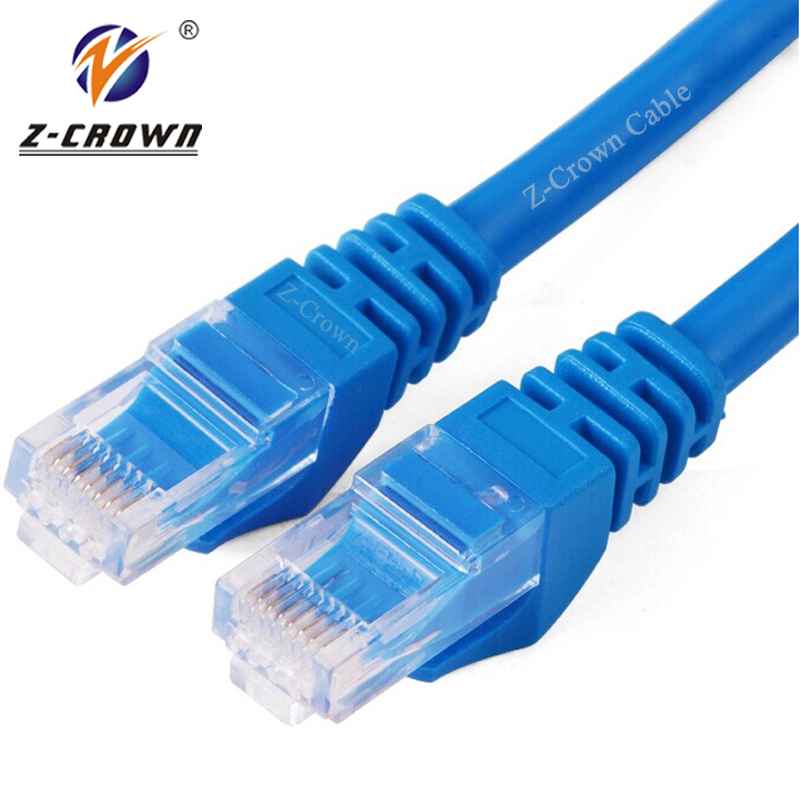

Cat6 UTP Patch Cord
| Price: | Get Latest Price |
| Model: | |
| Material: | |
| Standard: | CE, ROHS, ETL , UL, ISO9001 |
| Packaging |
Description
Performance
Features
◆CAT6 patch cord complies with Catagory UL444, ANSI/ TIA/ EIA568B & ISO/ IEC 11801 standard.
◆Supports transmission of digital and analogue voice, data, and video signal.
◆With RJ45 connectors in the both side.
◆Rated Temperature: -20℃ to 70℃.
Packing
◆1 Piece/ Polybag
◆Some Pieces/ Carton (Depend on the length)
| Inner Conductor | Material | Bare Copper |
| Diameter | 7*0.16mm (26AWG) | |
| Insulation (Dielectric) | Material | New PE (Polyethylene) |
| Thickness | ≥0.21mm | |
| Diameter | 1.03mm ± 0.01mm | |
| Cross Separator | Material | Plastic |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | New PVC |
| Thickness | ≥0.65mm | |
| Normal O.D. | 5.3mm ± 0.1mm | |
| Boot | Material | PVC |
| Shape | Customised | |
| Technology | Injection Molding | |
| Connector | Type | CAT6 RJ45 UTP Connector |
Performance
| Frequency | Impedance |
Return Loss |
Attenuation |
NEXT Worst Pair |
NEXT Power Sum |
ELFEXT Worst Pair |
ELFEXT Power Sum |
Normal Velocity Propagation |
| MHz | Ohm | dB | dB/ 100 | dB | dB | dB | dB | |
| 1 | 100±15 | 20.0 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 0.68C |
| 4 | 23.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | ||
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | ||
| 10 | 25.0 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | ||
| 16 | 25.0 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | ||
| 20 | 25.0 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | ||
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | ||
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | ||
| 62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | ||
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | ||
| 150 | 100±18 | 18.9 | 24.7 | 41.7 | 39.7 | 24.3 | 21.3 | |
| 200 | 18.0 | 29.0 | 38.8 | 37.8 | 21.8 | 18.8 | ||
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 |
Features
◆CAT6 patch cord complies with Catagory UL444, ANSI/ TIA/ EIA568B & ISO/ IEC 11801 standard.
◆Supports transmission of digital and analogue voice, data, and video signal.
◆With RJ45 connectors in the both side.
◆Rated Temperature: -20℃ to 70℃.
Packing
◆1 Piece/ Polybag
◆Some Pieces/ Carton (Depend on the length)
